Sliding, rolling, twist, splitting, section and sizing guide boxes — plus guide beams, high-speed delivery systems, quenching pipelines and spare parts. Built with ultimate wear resistance, ultra-high strength and excellent heat resistance, customized per drawing. Click any product image to view detailed specifications in a pop-up.
| Type | 出口滑动导卫 / Slide exit guide box |
| Application | Entry and exit guide of bar / wire rod / section rolling mills |
| Sizes | AU71, AU72, AU73, AU74, AU75, AU76 (6 standard sizes) |
| Material | Cast steel housing with replaceable wear-resistant guide plates |
| Features | Ultimate wear resistance; ultra-high strength; customized design |
| Item | W1 | H1 | E/F | W2(Max) | H2(Max) | L1 | L2 | N |
|---|---|---|---|---|---|---|---|---|
| AU71 | 70 | 80 | 60/70 | 25 | 25 | 550 | 150 | 110 |
| AU72 | 100 | 100 | 90/90 | 50 | 40 | 500 | 180 | 160 |
| AU73 | 130 | 130 | 120/120 | 70 | 50 | 600 | 200 | 200 |
| AU74 | 160 | 160 | 150/150 | 90 | 70 | 650 | 250 | 230 |
| AU75 | 200 | 200 | 190/190 | 120 | 90 | 700 | 260 | 280 |
| AU76 | 260 | 220 | 240/200 | 160 | 100 | 800 | 280 | 350 |

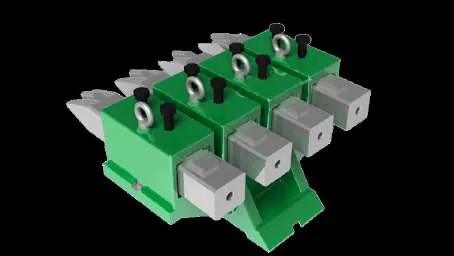

Sliding guide — multi-unit assembly

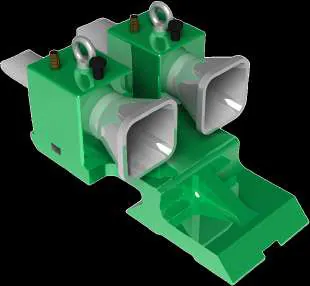

Twin-tube exit sliding guide

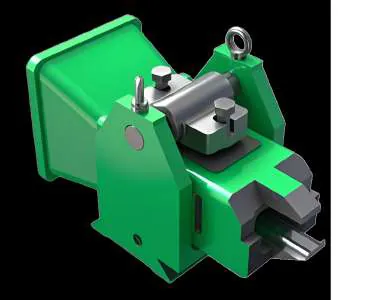

Sliding guide housing

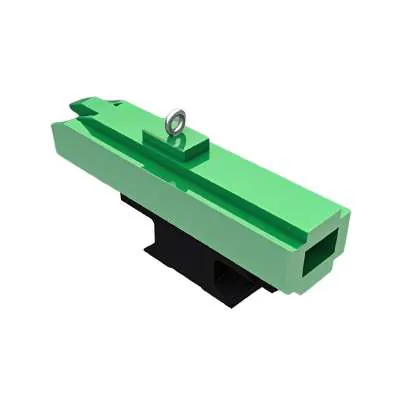

Long sliding guide base

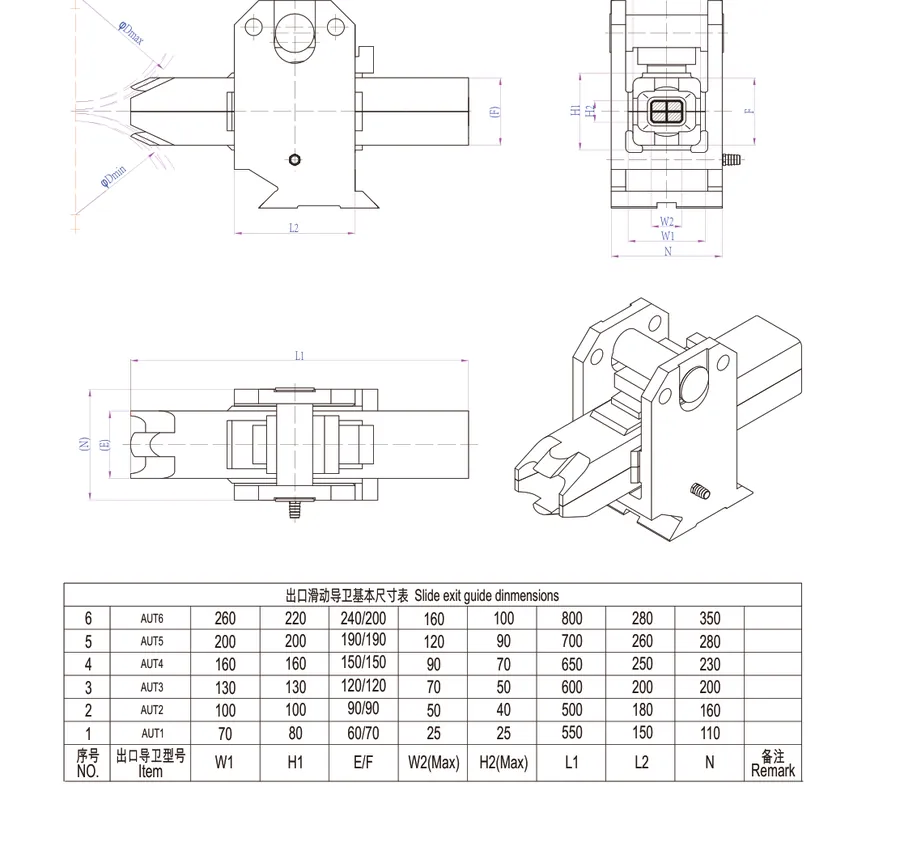

General arrangement drawing & slide exit guide dimensions (mm)
| Type | 滚动导卫 / Rolling (roller) guide |
| Application | Precise guidance of bar and wire rod between rolling stands |
| Models | DR2B/1, DR2B-P, DR4BPA |
| Material | Steel housing with roller guide shoes; grease lubrication |
| Features | Low friction on the bar surface; excellent heat resistance; quick change |
| Item | A | B | C | D1 | D2 | ØE(Max/Min) | F(Max/Min) | G | H |
|---|---|---|---|---|---|---|---|---|---|
| DR2B/1 | 380 | 220 | 196 | 35 | 35 | 65/52 | 96/76 | 81 | 202 |
| DR2B-P | 380 | 220 | 196 | 25 | 35 | 65/52 | 96/76 | 81 | 202 |
| DR4BPA | 430 | 280 | 249 | 35 | 65 | 80/65 | 127/95 | 112 | 263 |

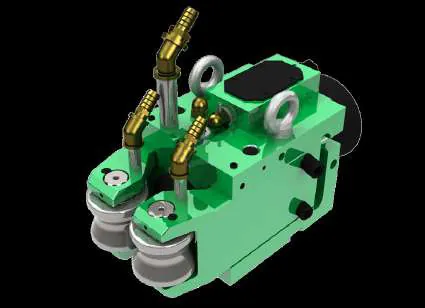

Rolling guide unit

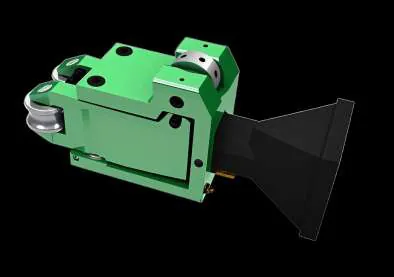

Rolling guide with entry trumpet

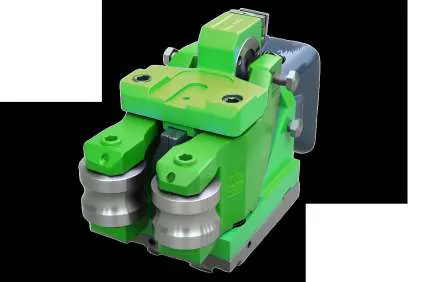

Rolling guide, side view

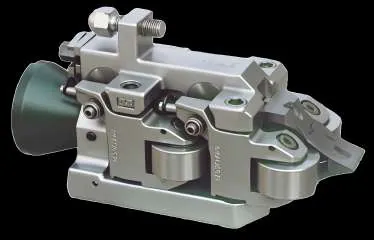

Roller guide variant
Roller guide variant

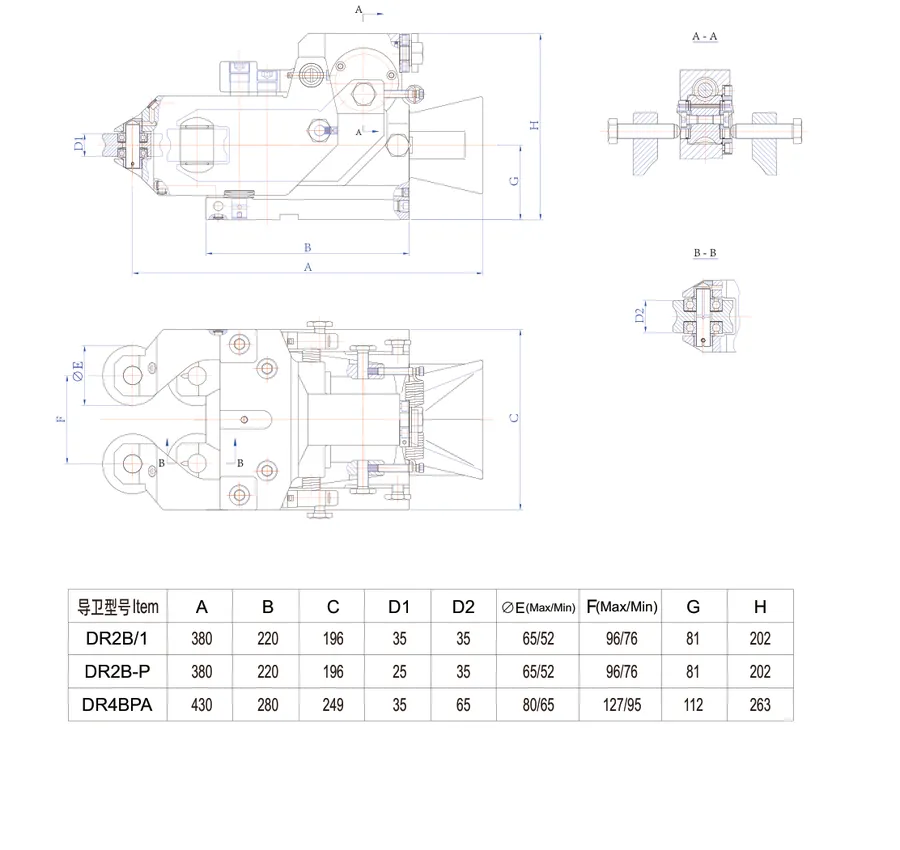

General arrangement drawing & guide dimensions (mm)
| Type | 扭转导卫 / Twist guide |
| Application | 90°/180° stock twisting between stands in rebar / bar mills |
| Models | CTR01, CTR02 |
| Material | Housing steel casting; twist tubes in wear-resistant alloy |
| Features | Precise twisting angle; easy roll change; customized design |
| Item | A | B | C | D | ØE(Max/Min) | F(Max/Min) | G | H |
|---|---|---|---|---|---|---|---|---|
| CTR01 | 560 | 280 | 190 | 75 | 95/85 | 112/108 | 97.5 | 239 |
| CTR02 | 880 | 330 | 190 | 75 | 105/85 | 152/138 | 100 | 255 |

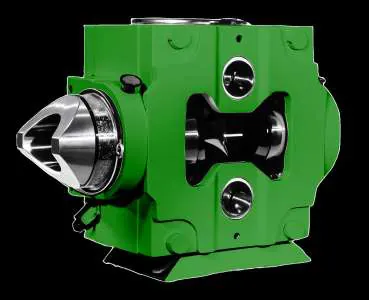

Twist guide unit

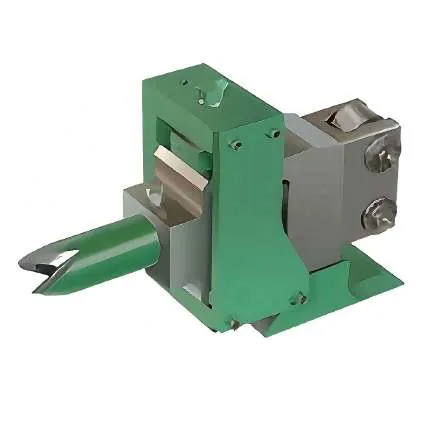

Twist guide with beak entry

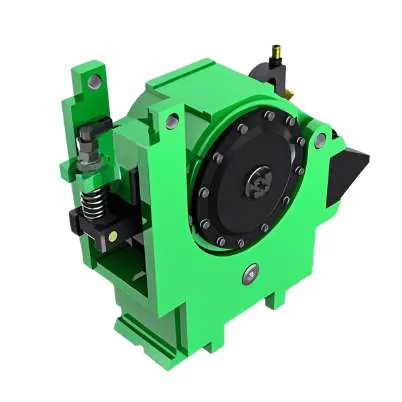

Flange twist guide variant

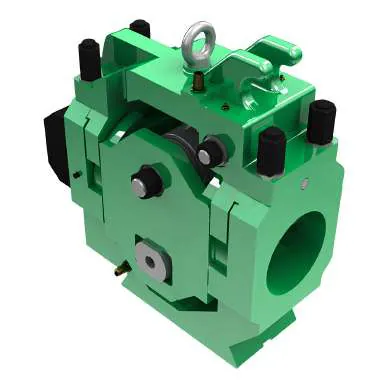

Multi-lance twist guide variant

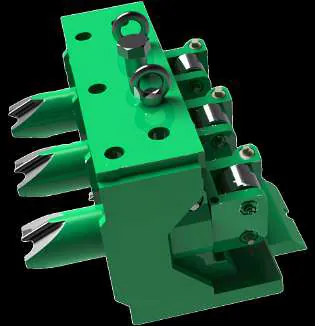

Round-housing twist guide variant

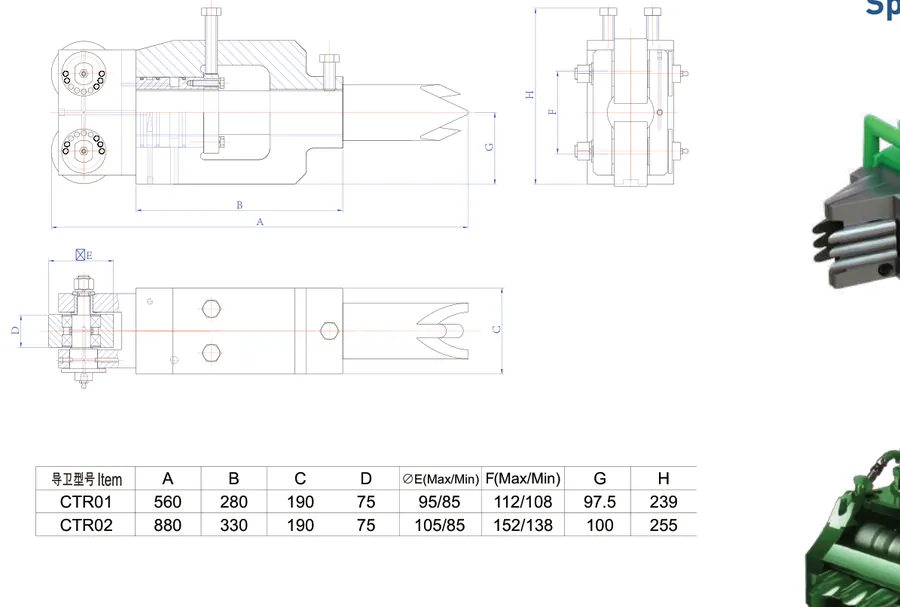

General arrangement drawing & guide dimensions (mm)
| Type | 切分导卫 / Splitting guide (二切分 / 三切分料盒) |
| Application | Multi-slitting rolling of rebars — splitting one bar into two or three strands |
| Key dimensions | Overall 582 × 328.5 mm; pass-line height 140 mm; splitting box width 194 mm (Ø164 / 164.5 mm roll pass) |
| Material | Wear-resistant splitting rollers and guide box |

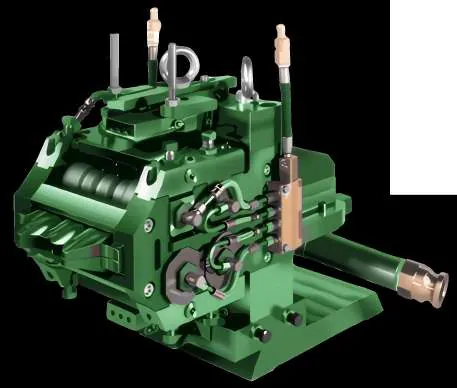

Splitting guide assembly

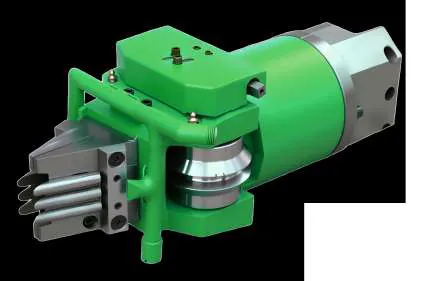

Splitting guide entry unit

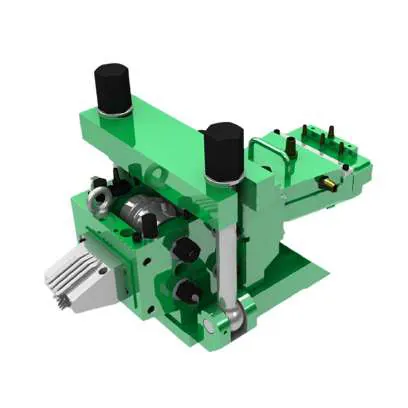

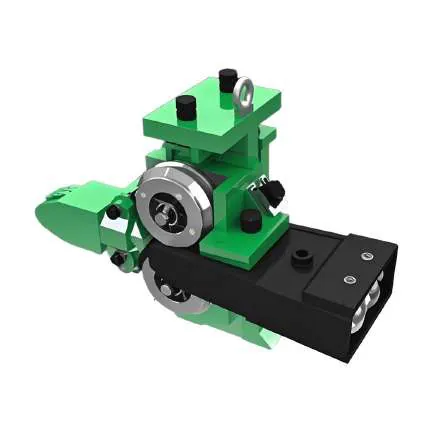

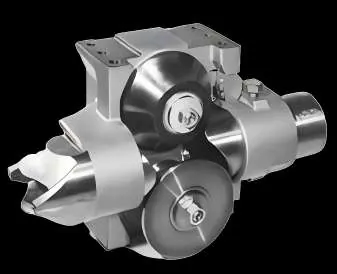

Splitting guide variant
Splitting guide variant
Splitting guide variant

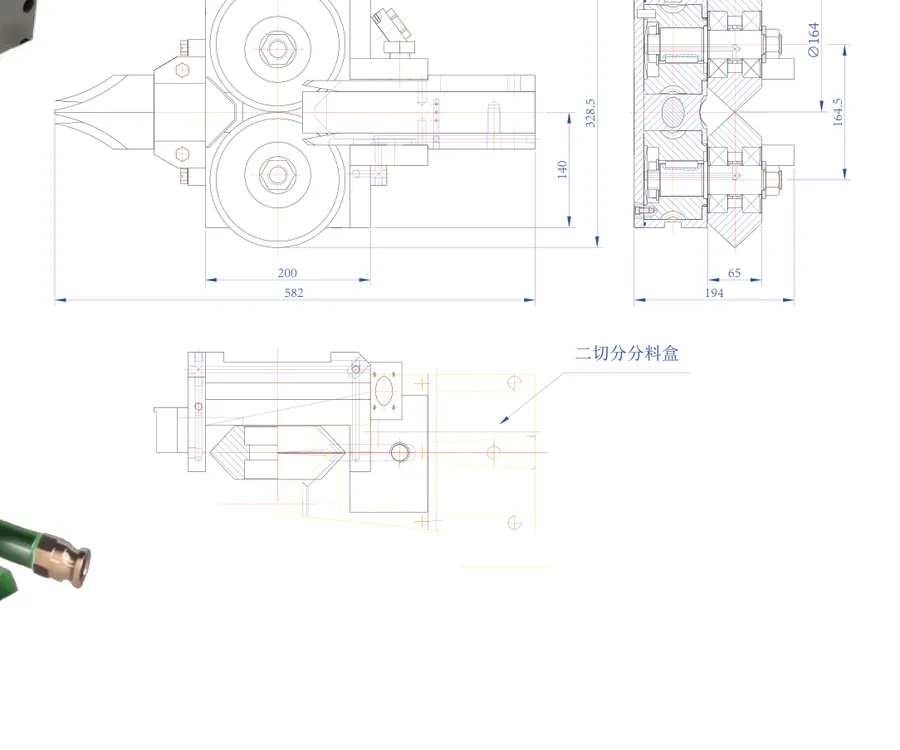

General arrangement drawing (mm)

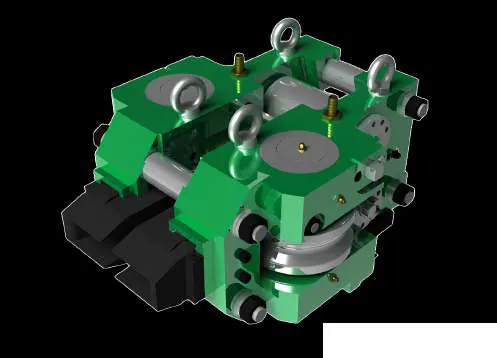

| Type | 型钢导卫 / Section rolling guide |
| Application | Angles, channels, I-beams, channels and other section steel mills |
| Types | Entry / exit guides with adjustable guide shoes; box-type guide housings |
| Features | Ultimate wear resistance; ultra-high strength; excellent heat resistance; customized design |

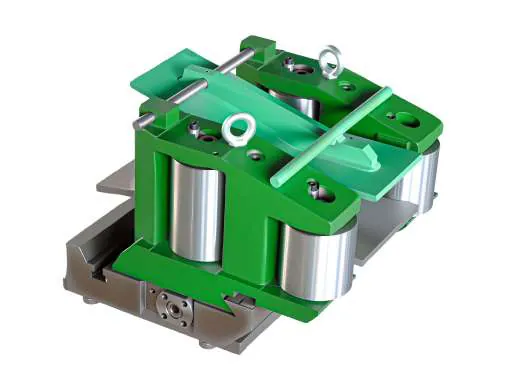

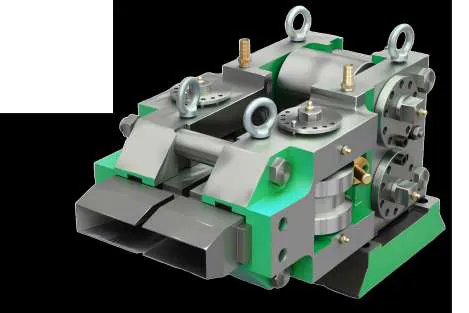

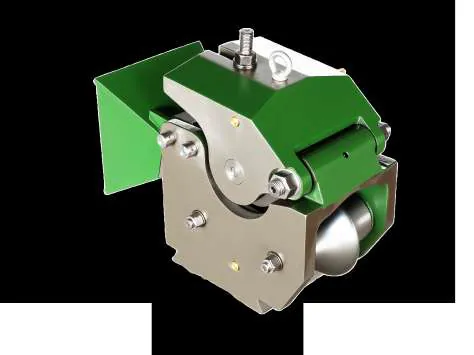

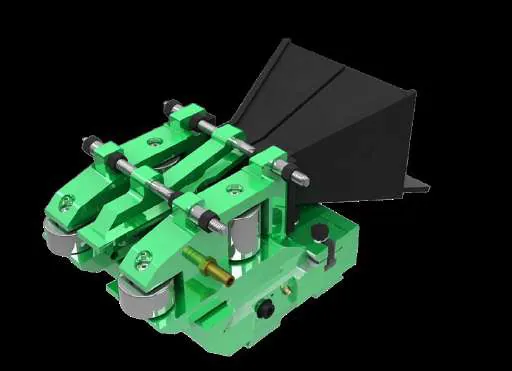

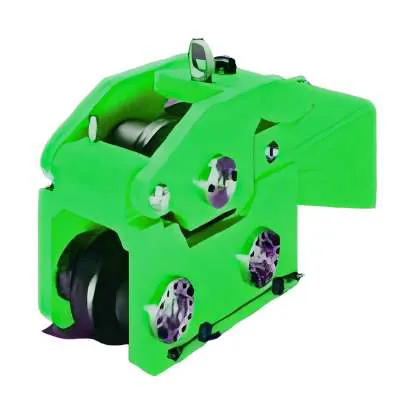

Section rolling guide
Section rolling guide
Section rolling guide
Section rolling guide
Section rolling guide
Section rolling guide
| Type | 减定径导卫 / Sizing guide |
| Application | High-precision sizing block of finishing / reducing & sizing mills |
| Features | Quick-change cassette; precise stock centering; wear-resistant rollers |

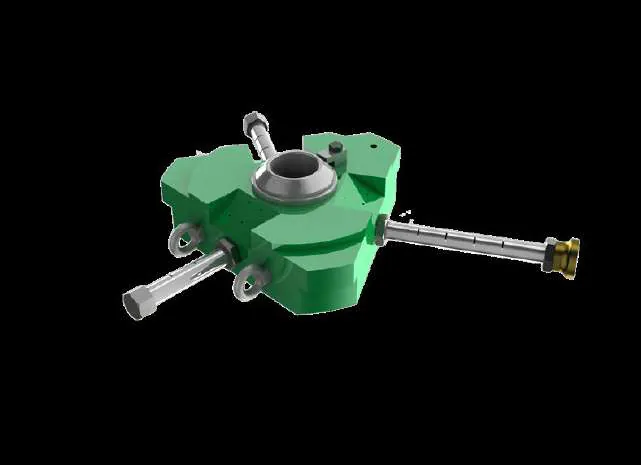

Sizing guide cassette

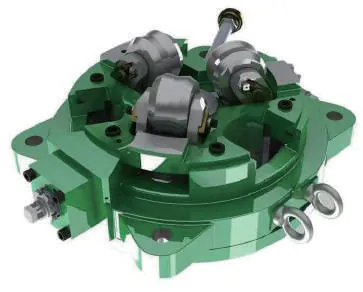

Sizing guide with adjustment rod
| Type | 导卫梁 / Guide beam |
| Application | Heavy-duty support beams holding the entry/exit guides in the rolling mill housing |
| Material | Welded steel frame, machined faces for guide mounting |

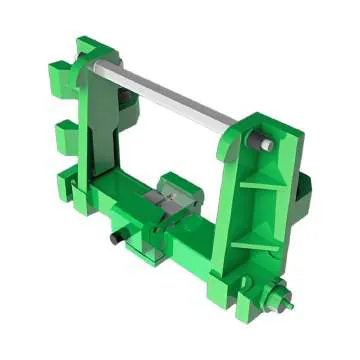

Guide beam frame

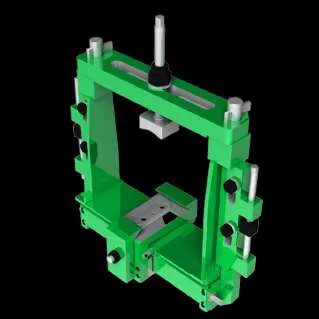

Guide beam variant

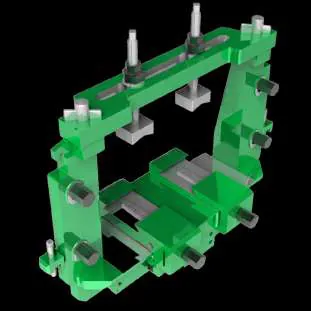

Guide beam variant
| Type | 高速上钢设备 / High-speed bar delivery (turntable / laying-on) system |
| Scope | Guide shoes (entry guide rails), walking-beam delivery system, turntable and cooling-bed apron |
| Application | High-speed wire rod and bar mills — laying bars onto the cooling bed |
| Note | One-stop supporting solution from a single product to a complete system for steel rolling production lines |

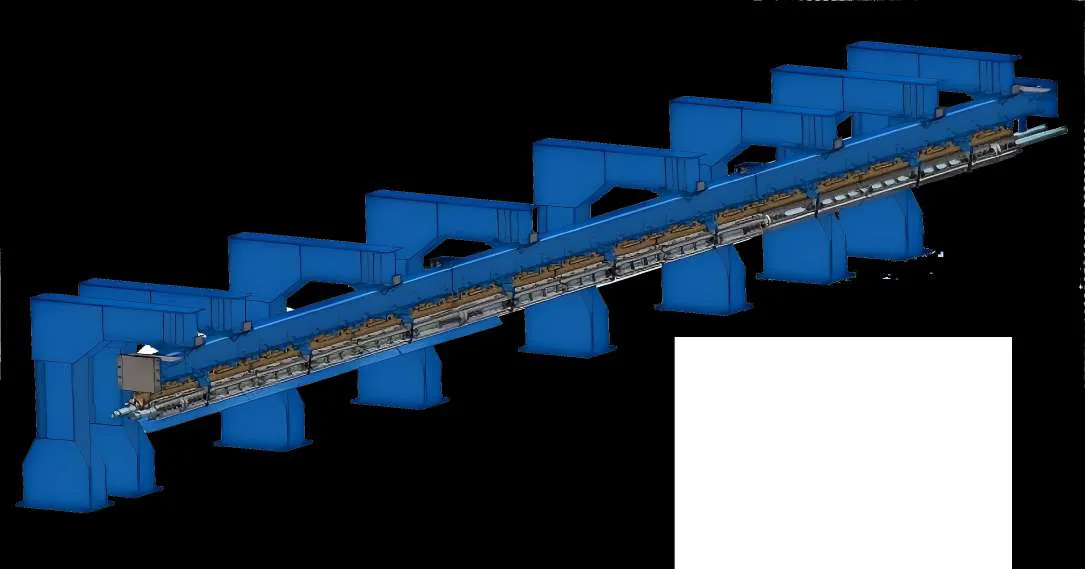

High-speed bar delivery system (overall)

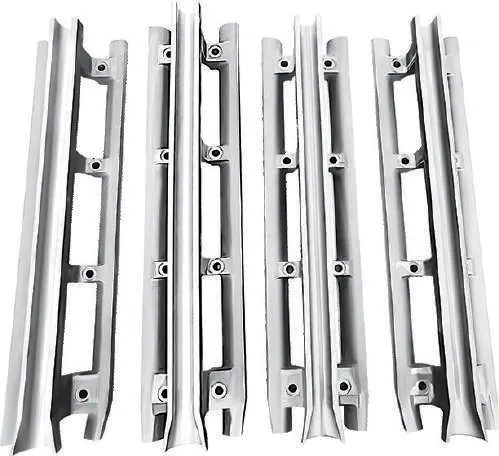

Entry guide shoes (white)

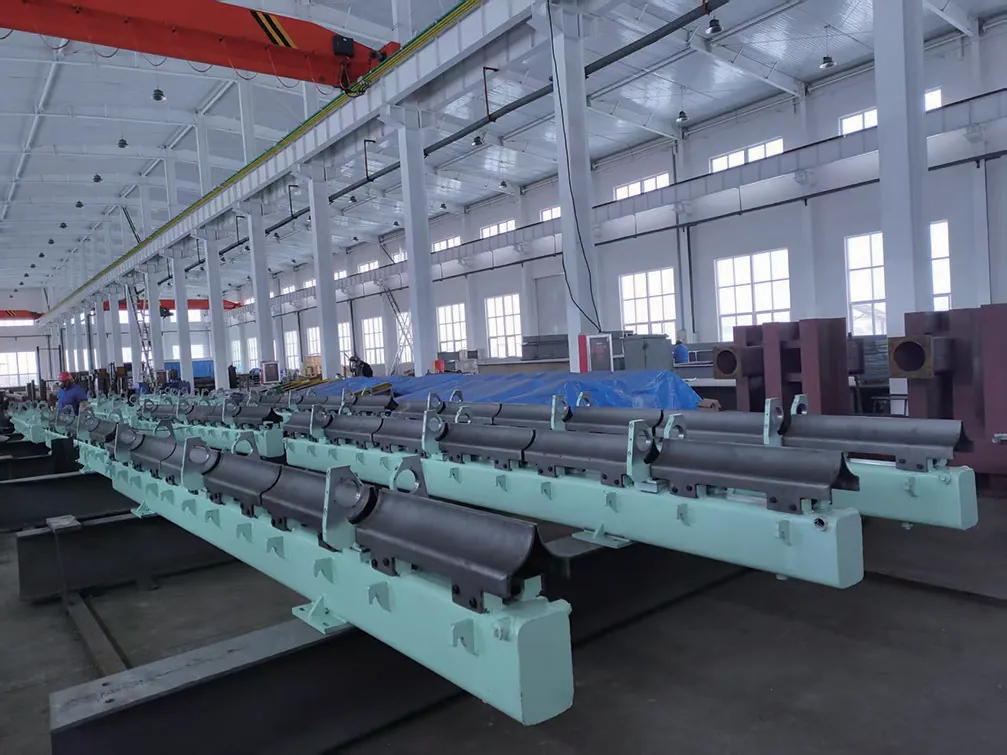

Delivery walk-beam, workshop assembly

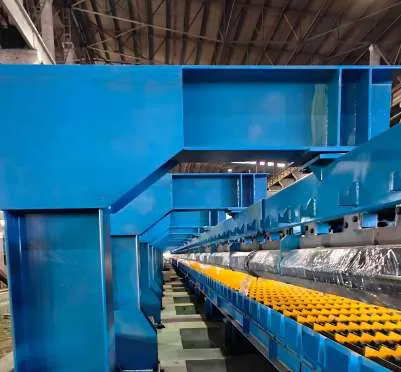

Cooling bed apron

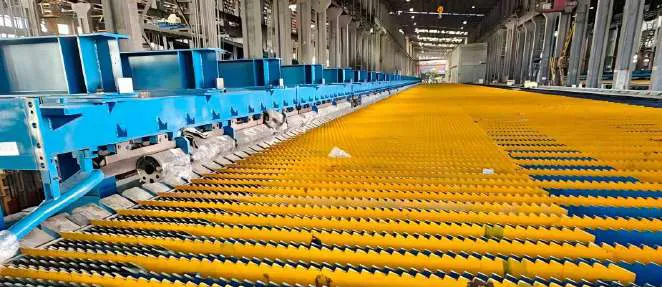

Cooling bed in operation

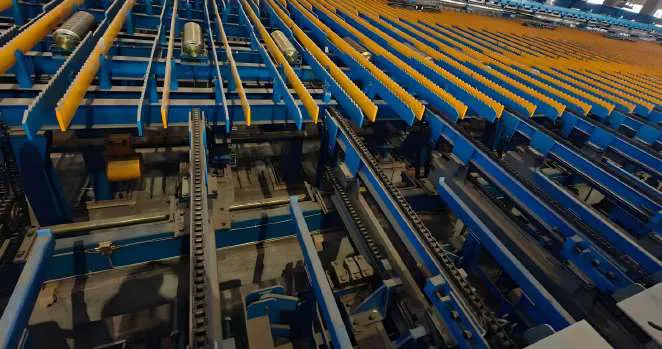

Cooling bed side view

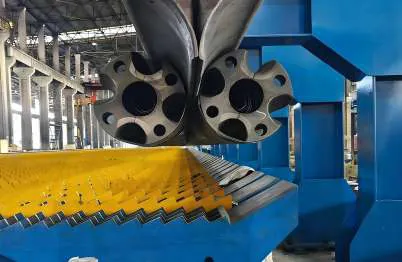

Walking beam, roller table detail
| Type | 穿水装置 / Quenching device (online water quenching / cooling line) |
| Application | Online quenching after finishing mill for rebar and high-carbon bars |
| Scope | Quenching pipe sections, manifolds, supports and control valves |

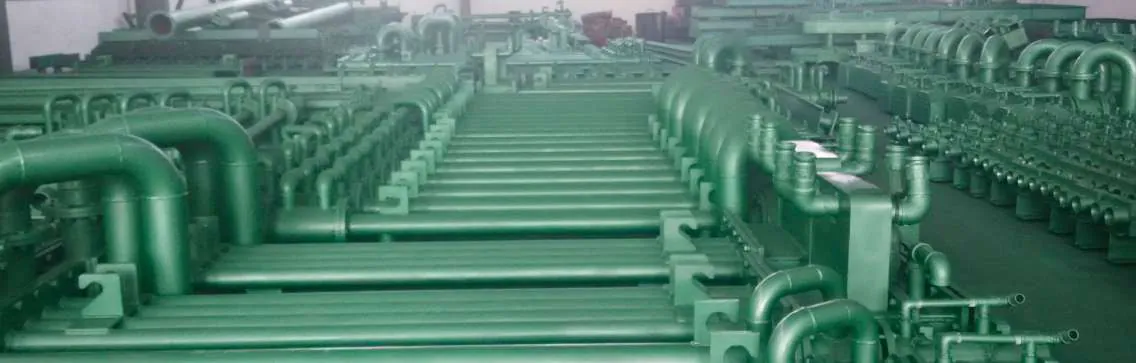

Quenching pipeline overall

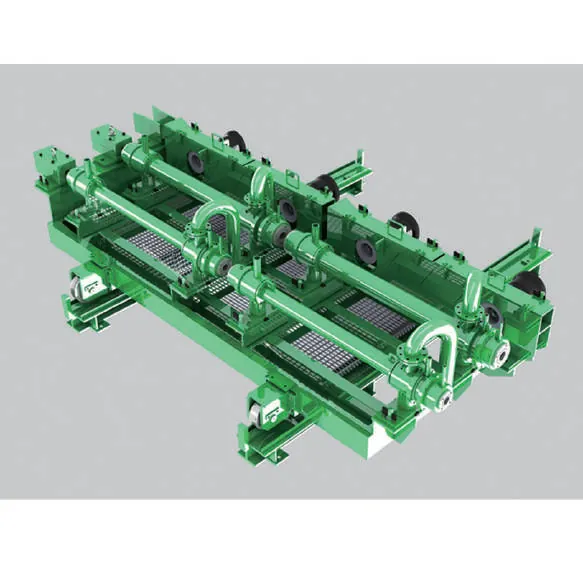

Quenching device module

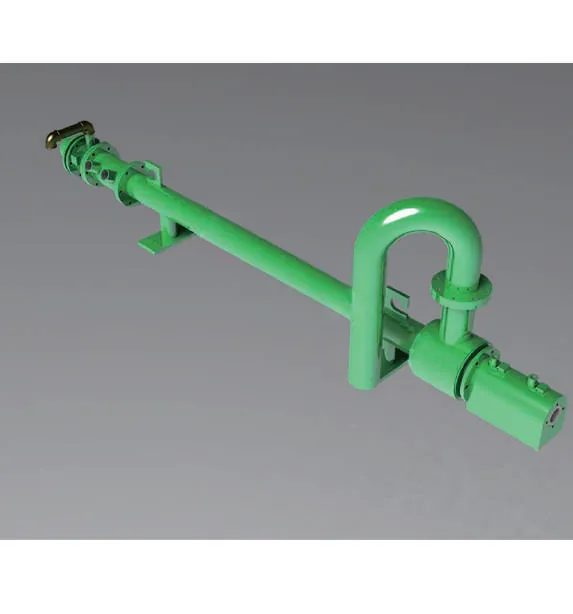

Quenching pipe section

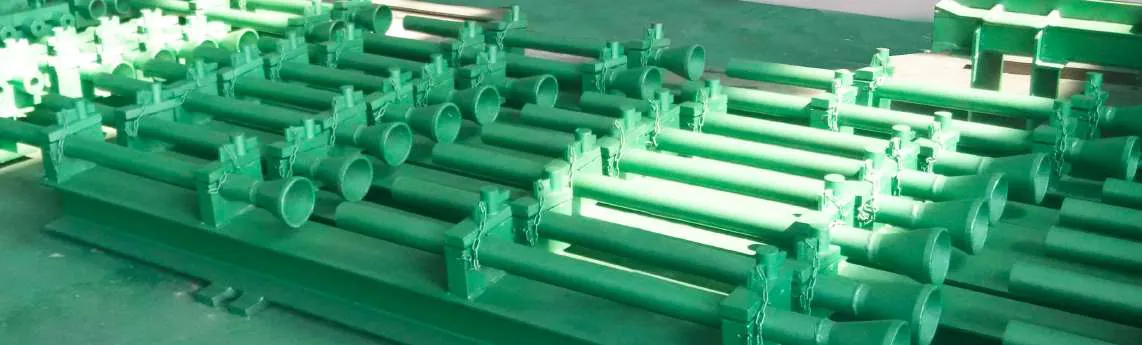

Quenching line in workshop

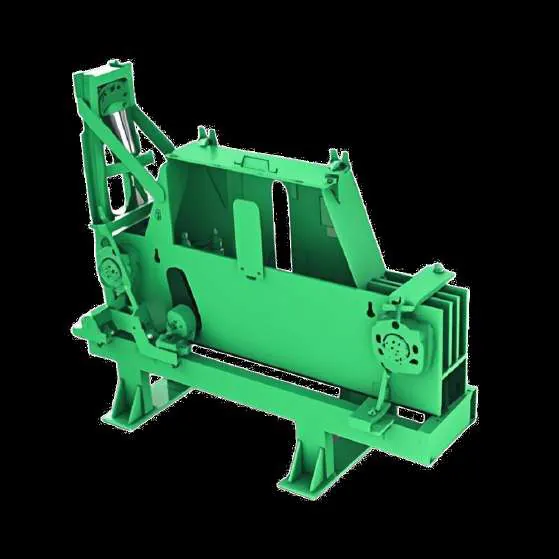

| Type | 备品备件 / Spare parts |
| Scope | Guide rolls, roll rings, shafts, wear plates/liners and guide box castings |
| Features | Ultimate wear resistance; customized design per drawing |
Guide box spare part

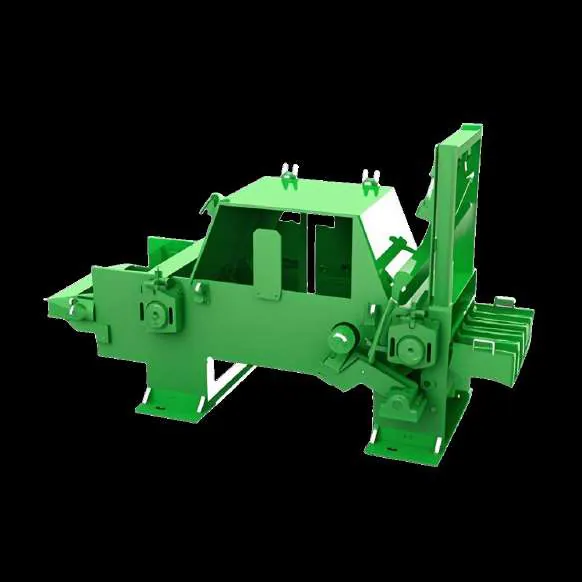

Guide box casting
Roller shaft

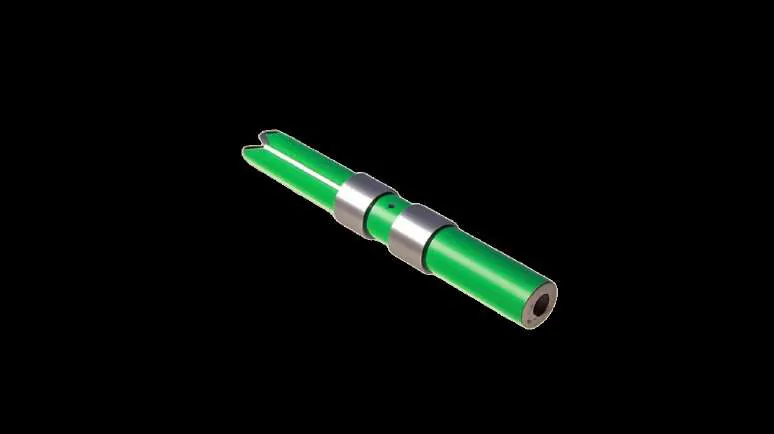

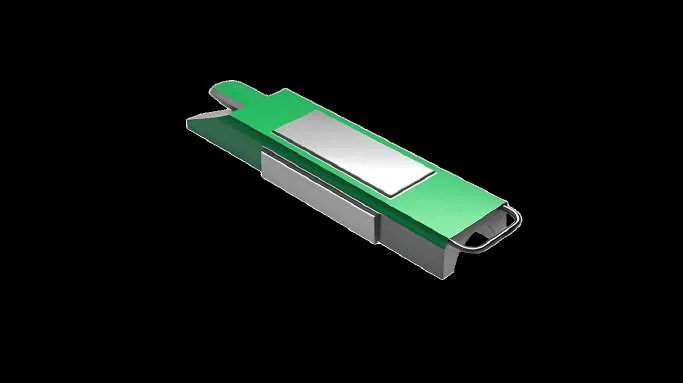

Roller assembly
Roller assembly

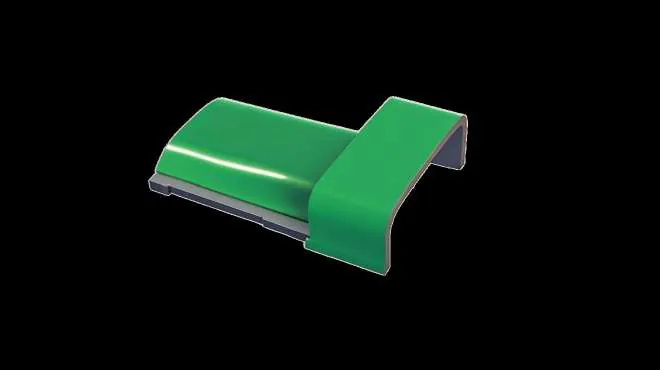

Sleeve liner

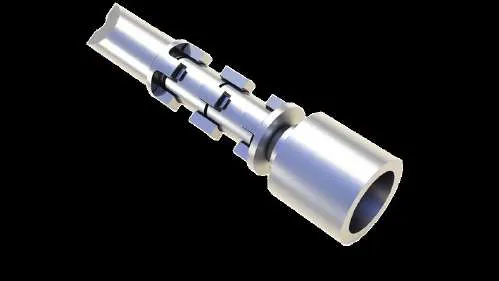

Roller shaft variant

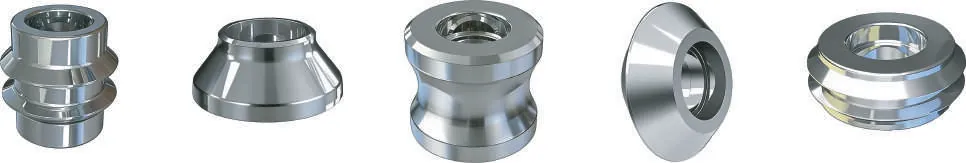

Roll rings
